Server-side

SSRF labs

SSRF labs show that the server made the request. The destination list in the vault stays there.

Concept note:Server-side request forgery

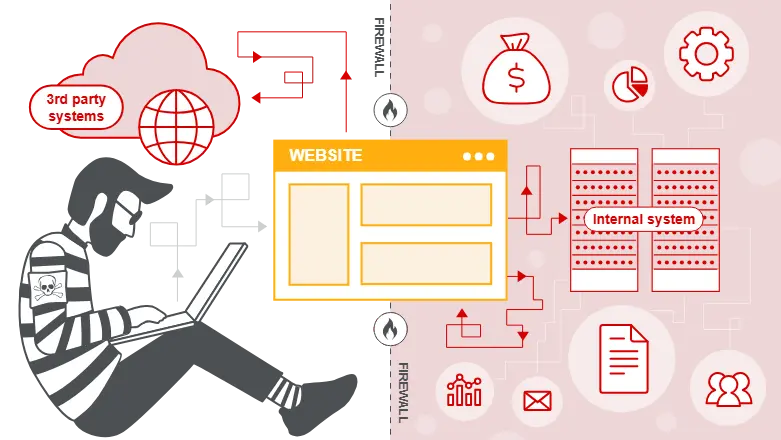

The figure

A user sends a URL to the application. The application fetches that URL from the server, including toward an internal host the user cannot route to.

The Quartz note uses this picture for the position of the request. The impact is who the server can reach, not a catalog of addresses.

What those labs were comparing

Confirm the feature with the lab’s intended URL first. That response is the baseline.

Visible: the body or an error shows the fetch. Compare a destination the lab names by role, such as its internal service.
Blind: the response looks ordinary, and the evidence is an out-of-band lookup. One Collaborator hostname, one field, then poll.
Partial input: you supply a host or a path and the server builds the rest of the URL.
A document or a Referer that some other component fetches.
A text filter that disagrees with the parser, or a redirect whose second hop was not checked.

The vault frame that lists URL spellings for a block list stays in the vault. Record whether a fetch happened, and whether it happened after parsing and after redirects.
